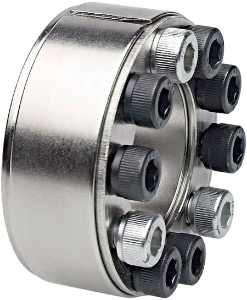

OKBS40 : Internal Locking Assemblies 255-68,000Nm
OKBS40-90X130
OKBS40-90X130
C60 Steel Internal Locking Assemblies, Not Self Centering
Product specifications
Diameter [B]
90
Diameter [D]
130
Torque (Nm)
6600
Dimension [L]
40
Dimension [L1]
24
Dimension [b]
28
Shaft Pw N/mm²
180
Hub Pn (N/mm²)
125
No. of Screws
16
Cap Screw Din 912
M10x25
Ta (Nm)
70
Mass [kg]
1.53
Specifications
Overview
Product specifications
Diameter [B]
90
Diameter [D]
130
Torque (Nm)
6600
Dimension [L]
40
Dimension [L1]
24
Dimension [b]
28
Shaft Pw N/mm²
180
Hub Pn (N/mm²)
125
No. of Screws
16
Cap Screw Din 912
M10x25
Ta (Nm)
70
Mass [kg]
1.53
