OKBS40-85X125

Ondrives Precision Gears and Gearboxes Part number OKBS40-85X125

OKBS40-85X125

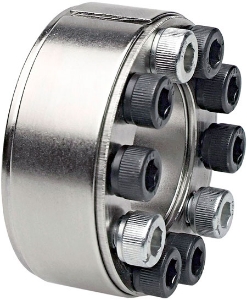

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-85X125 Ondrives Precision Gears and Gearboxes Part number OKBS40-85X125

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)6300
Dimension [L]40
Dimension [L1]24
Dimension [b]28
Shaft Pw N/mm²195
Hub Pn (N/mm²)130
No. of Screws16
Cap Screw Din 912M10x25
Ta (Nm)70
Mass [kg]1.49

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)6300
Dimension [L]40
Dimension [L1]24
Dimension [b]28
Shaft Pw N/mm²195
Hub Pn (N/mm²)130
No. of Screws16
Cap Screw Din 912M10x25
Ta (Nm)70
Mass [kg]1.49
