OKBS40-48X80

bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

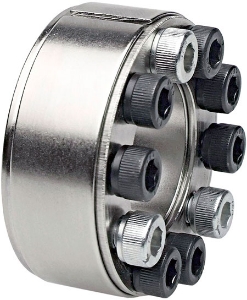

OKBS40-48X80

C60 Steel Internal Locking Assemblies, Not Self Centering
bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Diameter [B]48
Diameter [D]80
Torque (Nm)1700
Dimension [L]34
Dimension [L1]20
Dimension [b]24
Shaft Pw N/mm²196
Hub Pn (N/mm²)115
No. of Screws12
Cap Screw Din 912M8x22
Ta (Nm)35
Mass [kg]0.6

Product specifications

Diameter [B]48
Diameter [D]80
Torque (Nm)1700
Dimension [L]34
Dimension [L1]20
Dimension [b]24
Shaft Pw N/mm²196
Hub Pn (N/mm²)115
No. of Screws12
Cap Screw Din 912M8x22
Ta (Nm)35
Mass [kg]0.6
