OKBS40-40X65

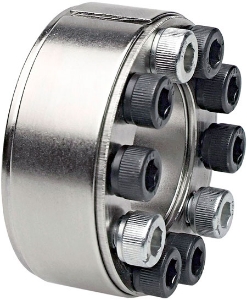

Ondrives Precision Gears and Gearboxes Part number OKBS40-40X65

OKBS40-40X65

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-40X65 Ondrives Precision Gears and Gearboxes Part number OKBS40-40X65

Product specifications

Diameter [B]40
Diameter [D]65
Torque (Nm)910
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²180
Hub Pn (N/mm²)110
No. of Screws14
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.34

Product specifications

Diameter [B]40
Diameter [D]65
Torque (Nm)910
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²180
Hub Pn (N/mm²)110
No. of Screws14
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.34
