OKBS40-180X235

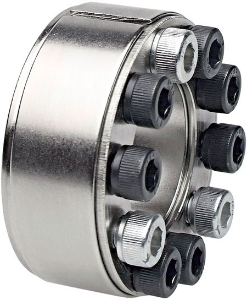

Ondrives Precision Gears and Gearboxes Part number OKBS40-180X235

OKBS40-180X235

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-180X235 Ondrives Precision Gears and Gearboxes Part number OKBS40-180X235

Product specifications

Diameter [B]180
Diameter [D]235
Torque (Nm)37800
Dimension [L]60
Dimension [L1]38
Dimension [b]44
Shaft Pw N/mm²165
Hub Pn (N/mm²)125
No. of Screws24
Cap Screw Din 912M14x40
Ta (Nm)190
Mass [kg]6.05

Product specifications

Diameter [B]180
Diameter [D]235
Torque (Nm)37800
Dimension [L]60
Dimension [L1]38
Dimension [b]44
Shaft Pw N/mm²165
Hub Pn (N/mm²)125
No. of Screws24
Cap Screw Din 912M14x40
Ta (Nm)190
Mass [kg]6.05
