OKBS40-100X145

OKBS40-100X145

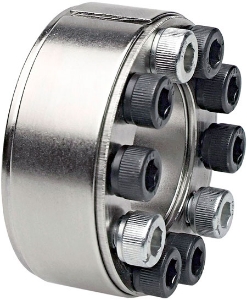

C60 Steel Internal Locking Assemblies, Not Self Centering

Product specifications

Diameter [B]100
Diameter [D]47
Torque (Nm)10200
Dimension [L]47
Dimension [L1]26
Dimension [b]33
Shaft Pw N/mm²200
Hub Pn (N/mm²)133
No. of Screws14
Cap Screw Din 912M12x30
Ta (Nm)125
Mass [kg]2.01
