OKBK/EK-38-2

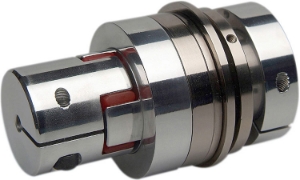

Torque Limiter with Collet Clamp, Polyurethane Insert, Steel Hubs, 150-300Nm Adjustable Overload Torque

Product specifications

Diameter [D]	119
Dimension [L]	160
Min. Bore Diameter [D1] H7	20
Max. Bore Diameter [D1] H7	45
Min. Bore Diameter [D2] H7	30
Max. Bore Diameter [D2] H7	57
Diameter [D3]	80
Diameter [D4]	110
Thread [M] DIN 912	M12
Tightening Torque TA Nm [M]	125
Thread [M1] DIN 912	M8
Tightening Torque TA Nm [M1]	25
Dimension [L1]	67
Dimension [t]	2
Max. Speed [rpm]	4980
Mass [kg]	5.7
Moment of Inertia J Kg cm²	86
Torque (Nm)	325
Adjustable Overload Torque TKN (Nm)	150-300
Radial Misalignment ∆Kr (mm)	0.12
Axial Misalignment ∆Ka (mm)	1.8
Angular Misalignment ∆Kw (°)	0.9°
