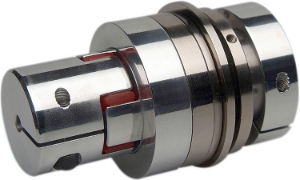

OKBK/EK-14-2

Torque Limiter with Collet Clamp, Polyurethane Insert, Aluminium Hubs, 5-10Nm Adjustable Overload Torque

Product specifications

Diameter [D]	49
Dimension [L]	65
Min. Bore Diameter [D1] H7	4
Max. Bore Diameter [D1] H7	16
Min. Bore Diameter [D2] H7	6
Max. Bore Diameter [D2] H7	20
Diameter [D3]	30
Diameter [D4]	42
Thread [M] DIN 912	M4
Tightening Torque TA Nm [M]	5.1
Thread [M1] DIN 912	M3
Tightening Torque TA Nm [M1]	1.4
Dimension [L1]	24
Dimension [t]	0.7
Max. Speed [rpm]	11690
Mass [kg]	0.24
Moment of Inertia J Kg cm²	0.6
Torque (Nm)	12.5
Adjustable Overload Torque TKN (Nm)	5-10
Radial Misalignment ∆Kr (mm)	0.09
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	0.9°
