OKB7 : Metal Bellows for Flange Mounting
OKB7/80-62
OKB7/80-62

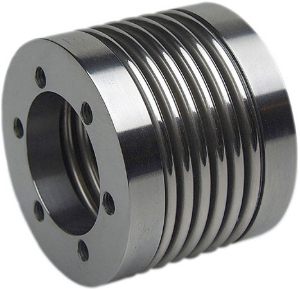

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Hubs for Flange Mounting
Product specifications
Torque (Nm)
80
Dimension [L] ±2
62
Diameter [A]
82
Bore Diameter [D] H7
50
Diameter [D3]
62
Dimension [E]
13
Thread [d]
M6
Mass [kg]
0.75
Moment of Inertia J g m²
0.92
Spring Stiffness Torsional Ct Nm/rad
75x10-3
Spring Stiffness Radial CR N/Nm
400
Spring Stiffness Axial CA N/mm
50
Radial Misalignment ∆Kr (mm)
0.25
Axial Misalignment ∆Ka (mm)
1
Angular Misalignment ∆Kw (°)
2.0°
Specifications
Overview
Product specifications
Torque (Nm)
80
Dimension [L] ±2
62
Diameter [A]
82
Bore Diameter [D] H7
50
Diameter [D3]
62
Dimension [E]
13
Thread [d]
M6
Mass [kg]
0.75
Moment of Inertia J g m²
0.92
Spring Stiffness Torsional Ct Nm/rad
75x10-3
Spring Stiffness Radial CR N/Nm
400
Spring Stiffness Axial CA N/mm
50
Radial Misalignment ∆Kr (mm)
0.25
Axial Misalignment ∆Ka (mm)
1
Angular Misalignment ∆Kw (°)
2.0°
