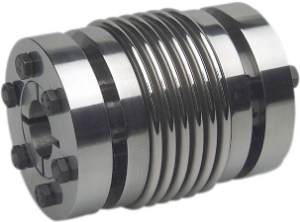

OKB6/800-184

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Outer Conical Hubs

Product specifications

Torque (Nm)	800
Dimension [L] ±2	184
Diameter [A]	157
Min. Bore Diameter [D1] & [D2] H7	50
Max. Bore Diameter [D1] & [D2] H7	70
Dimension [E]	50
Dimension [L1]	108
Dimension [b]	169
Thread [d]	6 x M12
Tightening Torque TA Nm	85
Mass (g)	3.98
Moment of Inertia J g m²	7.310
Spring Stiffness Torsional Ct Nm/rad	320x10-3
Spring Stiffness Radial CR N/Nm	970
Spring Stiffness Axial CA N/mm	85
Radial Misalignment ∆Kr (mm)	0.25
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	1.8°
