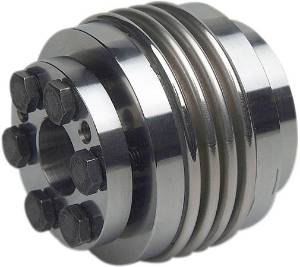

OKB5/60-73

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	60
Dimension [L] ±2	73
Diameter [A]	66
Min. Bore Diameter [D1] & [D2] H7	15
Max. Bore Diameter [D1] & [D2] H7	25
Dimension [E]	25
Dimension [L1]	47
Dimension [b]	65
Thread [d]	6 x M6
Tightening Torque TA Nm	8.5
Mass [kg]	0.79
Moment of Inertia J g m²	0.340
Spring Stiffness Torsional Ct Nm/rad	50x10-3
Spring Stiffness Radial CR N/Nm	340
Spring Stiffness Axial CA N/mm	50
Radial Misalignment ∆Kr (mm)	0.25
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	2.0°
