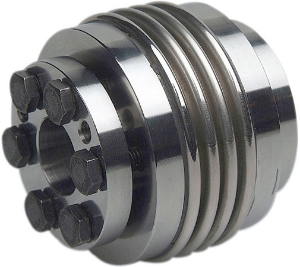

OKB5/60-62

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	60
Dimension [L] ±2	62
Diameter [A]	66
Min. Bore Diameter [D1] & [D2] H7	15
Max. Bore Diameter [D1] & [D2] H7	25
Dimension [E]	25
Dimension [L1]	36
Dimension [b]	54
Thread [d]	6 x M6
Tightening Torque TA Nm	8.5
Mass [kg]	0.77
Moment of Inertia J g m²	0.320
Spring Stiffness Torsional Ct Nm/rad	75x10-3
Spring Stiffness Radial CR N/Nm	1150
Spring Stiffness Axial CA N/mm	90
Radial Misalignment ∆Kr (mm)	0.15
Axial Misalignment ∆Ka (mm)	0.6
Angular Misalignment ∆Kw (°)	1.5°
