OKB5/500-112

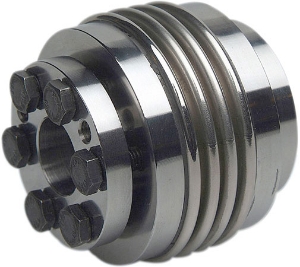

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	500
Dimension [L] ±2	112
Diameter [A]	122
Min. Bore Diameter [D1] & [D2] H7	35
Max. Bore Diameter [D1] & [D2] H7	55
Dimension [E]	40
Dimension [L1]	77
Dimension [b]	101
Thread [d]	6 x M8
Tightening Torque TA Nm	25
Mass [kg]	3.87
Moment of Inertia J g m²	6.380
Spring Stiffness Torsional Ct Nm/rad	320x10-3
Spring Stiffness Radial CR N/Nm	970
Spring Stiffness Axial CA N/mm	85
Radial Misalignment ∆Kr (mm)	0.25
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	2.0°

Torque (Nm)	500
Dimension [L] ±2	112
Diameter [A]	122
Min. Bore Diameter [D1] & [D2] H7	35
Max. Bore Diameter [D1] & [D2] H7	55
Dimension [E]	40
Dimension [L1]	77
Dimension [b]	101
Thread [d]	6 x M8
Tightening Torque TA Nm	25
Mass [kg]	3.87
Moment of Inertia J g m²	6.380
Spring Stiffness Torsional Ct Nm/rad	320x10-3
Spring Stiffness Radial CR N/Nm	970
Spring Stiffness Axial CA N/mm	85
Radial Misalignment ∆Kr (mm)	0.25
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	2.0°
