OKB5/200-78

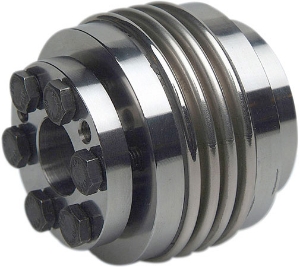

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	200
Dimension [L] ±2	78
Diameter [A]	90
Min. Bore Diameter [D1] & [D2] H7	20
Max. Bore Diameter [D1] & [D2] H7	40
Dimension [E]	30
Dimension [L1]	50
Dimension [b]	70
Thread [d]	6 x M6
Tightening Torque TA Nm	15
Mass [kg]	1.59
Moment of Inertia J g m²	1.390
Spring Stiffness Torsional Ct Nm/rad	175x10-3
Spring Stiffness Radial CR N/Nm	2500
Spring Stiffness Axial CA N/mm	145
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°

Torque (Nm)	200
Dimension [L] ±2	78
Diameter [A]	90
Min. Bore Diameter [D1] & [D2] H7	20
Max. Bore Diameter [D1] & [D2] H7	40
Dimension [E]	30
Dimension [L1]	50
Dimension [b]	70
Thread [d]	6 x M6
Tightening Torque TA Nm	15
Mass [kg]	1.59
Moment of Inertia J g m²	1.390
Spring Stiffness Torsional Ct Nm/rad	175x10-3
Spring Stiffness Radial CR N/Nm	2500
Spring Stiffness Axial CA N/mm	145
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°
