OKB5/150-78

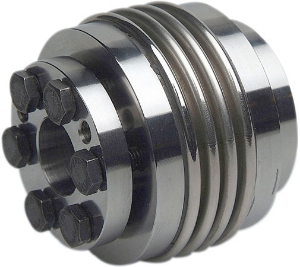

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	150
Dimension [L] ±2	78
Diameter [A]	82
Min. Bore Diameter [D1] & [D2] H7	20
Max. Bore Diameter [D1] & [D2] H7	35
Dimension [E]	30
Dimension [L1]	50
Dimension [b]	70
Thread [d]	6 x M6
Tightening Torque TA Nm	15
Mass [kg]	1.36
Moment of Inertia J g m²	1.150
Spring Stiffness Torsional Ct Nm/rad	155x10-3
Spring Stiffness Radial CR N/Nm	2020
Spring Stiffness Axial CA N/mm	145
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°

Torque (Nm)	150
Dimension [L] ±2	78
Diameter [A]	82
Min. Bore Diameter [D1] & [D2] H7	20
Max. Bore Diameter [D1] & [D2] H7	35
Dimension [E]	30
Dimension [L1]	50
Dimension [b]	70
Thread [d]	6 x M6
Tightening Torque TA Nm	15
Mass [kg]	1.36
Moment of Inertia J g m²	1.150
Spring Stiffness Torsional Ct Nm/rad	155x10-3
Spring Stiffness Radial CR N/Nm	2020
Spring Stiffness Axial CA N/mm	145
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°
