OKB3/100-41

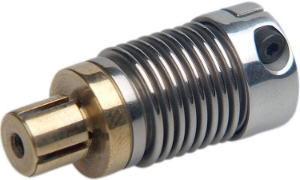

Miniature Flexible Stainless Steel Bellows Coupling, Aluminium Hubs, Expanding Clamp

Product specifications

Torque (Nm)	10
Dimension [L] ±1	41
Diameter [A]	40.5
Min. Bore Diameter [D1] H7	6
Max. Bore Diameter [D1] H7	22
Diameter [D2] h7	16
Diameter [B]	41.5
Dimension [k] [H]	15.5
Dimension [C]	5
Dimension [E]	14
Dimension [E1]	20
Thread [F]	M4
Thread [G]	M6
Tightening Torque TA Nm [F]	3.0
Tightening Torque TA Nm [G]	10.0
Mass (g)	135
Moment of Inertia J g cm²	235
Spring Stiffness Torsional Ct Nm/rad	8100
Spring Stiffness Radial CR N/Nm	120
Spring Stiffness Axial CA N/mm	27
Radial Misalignment ∆Kr (mm)	0.15
Axial Misalignment ∆Ka (mm)	0.4
Angular Misalignment ∆Kw (°)	1.5°
