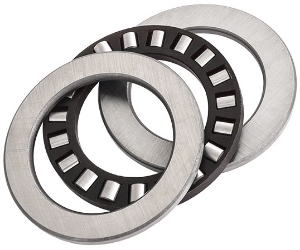

Needle Thrust Bearing Sets (JIS B 1514-1986). 70mm Bore.

Product specifications

Bore Diameter [d]70
Diameter [A]105
Dimension [T]27
Diameter [dc]70.05
Diameter [Dc]104.5
Dimension [Dw]11
Dimension [B]8
Dimension [r] Min.1
Diameter [Ci]78
Diameter [Ce]100
Diameter [da] Min.99
Diameter [Da] Max.78
Dynamic Load Rating [N]114000
Static Load Rating [N]379000
Max. Speed [rpm]3500
Mass (g)905
