AZ608517

AZ608517

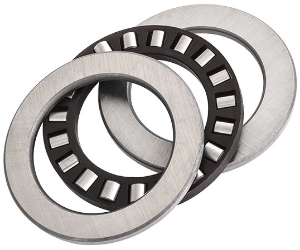

Needle Thrust Bearing Sets (JIS B 1514-1986). 60mm Bore.

Product specifications

Bore Diameter [d]60
Diameter [A]85
Dimension [T]17
Diameter [dc]60.05
Diameter [Dc]84.5
Dimension [Dw]7.5
Dimension [B]4.75
Dimension [r] Min.1
Diameter [Ci]65
Diameter [Ce]81
Diameter [da] Min.81
Diameter [Da] Max.66
Dynamic Load Rating [N]64600
Static Load Rating [N]224000
Max. Speed [rpm]4000
Mass (g)345
