AZ557816

Ondrives Precision Gears and Gearboxes Part number AZ557816

AZ557816

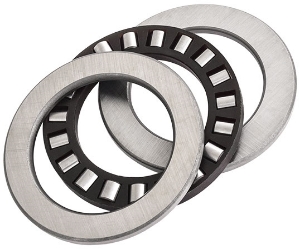

Needle Thrust Bearing Sets (JIS B 1514-1986). 55mm Bore.
Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816 Ondrives Precision Gears and Gearboxes Part number AZ557816

Product specifications

Bore Diameter [d]55
Diameter [A]78
Dimension [T]16
Diameter [dc]55.05
Diameter [Dc]77.5
Dimension [Dw]6
Dimension [B]5
Dimension [r] Min.0.6
Diameter [Ci]59
Diameter [Ce]75
Diameter [da] Min.75
Diameter [Da] Max.60
Dynamic Load Rating [N]51700
Static Load Rating [N]192000
Max. Speed [rpm]4500
Mass (g)275

Product specifications

Bore Diameter [d]55
Diameter [A]78
Dimension [T]16
Diameter [dc]55.05
Diameter [Dc]77.5
Dimension [Dw]6
Dimension [B]5
Dimension [r] Min.0.6
Diameter [Ci]59
Diameter [Ce]75
Diameter [da] Min.75
Diameter [Da] Max.60
Dynamic Load Rating [N]51700
Static Load Rating [N]192000
Max. Speed [rpm]4500
Mass (g)275
