AZ507822

Ondrives Precision Gears and Gearboxes Part number AZ507822

AZ507822

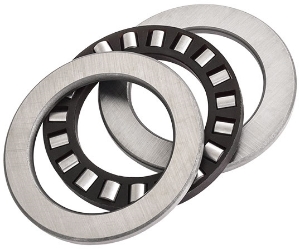

Needle Thrust Bearing Sets (JIS B 1514-1986). 50mm Bore.
Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822 Ondrives Precision Gears and Gearboxes Part number AZ507822

Product specifications

Bore Diameter [d]50
Diameter [A]78
Dimension [T]22
Diameter [dc]50.05
Diameter [Dc]77.5
Dimension [Dw]11
Dimension [B]5.5
Dimension [r] Min.1
Diameter [Ci]55
Diameter [Ce]74
Diameter [da] Min.73
Diameter [Da] Max.56
Dynamic Load Rating [N]84300
Static Load Rating [N]232000
Max. Speed [rpm]4500
Mass (g)430

Product specifications

Bore Diameter [d]50
Diameter [A]78
Dimension [T]22
Diameter [dc]50.05
Diameter [Dc]77.5
Dimension [Dw]11
Dimension [B]5.5
Dimension [r] Min.1
Diameter [Ci]55
Diameter [Ce]74
Diameter [da] Min.73
Diameter [Da] Max.56
Dynamic Load Rating [N]84300
Static Load Rating [N]232000
Max. Speed [rpm]4500
Mass (g)430
