AZ10249

Ondrives Precision Gears and Gearboxes Part number AZ10249

AZ10249

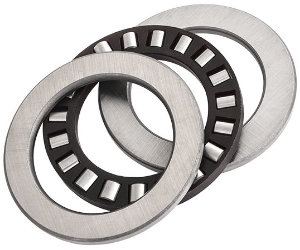

Needle Thrust Bearing Sets (JIS B 1514-1986). 10mm Bore.
Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249 Ondrives Precision Gears and Gearboxes Part number AZ10249

Product specifications

Bore Diameter [d]10
Diameter [A]24
Dimension [T]9
Diameter [dc]10.04
Diameter [Dc]23.6
Dimension [Dw]3.5
Dimension [B]2.75
Dimension [r] Min.0.3
Diameter [Ci]13
Diameter [Ce]21
Diameter [da] Min.21
Diameter [Da] Max.13
Dynamic Load Rating [N]8990
Static Load Rating [N]19100
Max. Speed [rpm]18000
Mass (g)24.6

Product specifications

Bore Diameter [d]10
Diameter [A]24
Dimension [T]9
Diameter [dc]10.04
Diameter [Dc]23.6
Dimension [Dw]3.5
Dimension [B]2.75
Dimension [r] Min.0.3
Diameter [Ci]13
Diameter [Ce]21
Diameter [da] Min.21
Diameter [Da] Max.13
Dynamic Load Rating [N]8990
Static Load Rating [N]19100
Max. Speed [rpm]18000
Mass (g)24.6
