F8-19G

Ondrives Precision Gears and Gearboxes Part number F8-19G

F8-19G

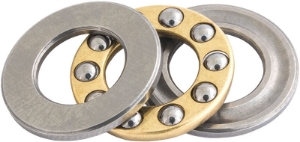

Steel Miniature Thrust Bearings with Grooved Washers. 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number F8-19G Ondrives Precision Gears and Gearboxes Part number F8-19G

Product specifications

Bore Diameter [d]8
Bore Diameter [d1]8.2
Diameter [A]19
Dimension [r] Min.0.3
Dimension [k] [H]7
Dynamic Load Rating [N]3854
Static Load Rating [N]3403
Max. Speed [rpm]13000

Product specifications

Bore Diameter [d]8
Bore Diameter [d1]8.2
Diameter [A]19
Dimension [r] Min.0.3
Dimension [k] [H]7
Dynamic Load Rating [N]3854
Static Load Rating [N]3403
Max. Speed [rpm]13000
