F4-9G

Ondrives Precision Gears and Gearboxes Part number F4-9G

F4-9G

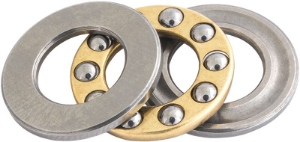

Steel Miniature Thrust Bearings with Grooved Washers. 4mm Bore.
Ondrives Precision Gears and Gearboxes Part number F4-9G Ondrives Precision Gears and Gearboxes Part number F4-9G

Product specifications

Bore Diameter [d] 4
Bore Diameter [d1] 4.2
Diameter [A] 9
Dimension [r] Min. 0.15
Dimension [k] [H] 4
Dynamic Load Rating [N] 922
Static Load Rating [N] 628
Max. Speed [rpm] 25000

Product specifications

Bore Diameter [d] 4
Bore Diameter [d1] 4.2
Diameter [A] 9
Dimension [r] Min. 0.15
Dimension [k] [H] 4
Dynamic Load Rating [N] 922
Static Load Rating [N] 628
Max. Speed [rpm] 25000
