MDW-63C

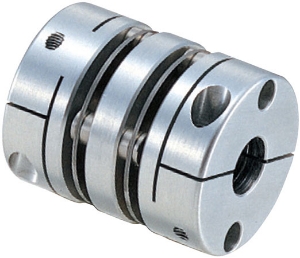

Ondrives Precision Gears and Gearboxes Part number MDW-63C

MDW-63C

Flexible Double Disc Coupling, Backlash Free, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MDW-63C Ondrives Precision Gears and Gearboxes Part number MDW-63C Ondrives Precision Gears and Gearboxes Part number MDW-63C

Product specifications

Min. Bore Diameter [D1] & [D2]15
Max. Bore Diameter [D1] & [D2]30
Diameter [A]63
Dimension [L]20
Dimension [W]61
Diameter [E]35
Dimension [F]7
Dimension [G]24
Dimension [M]M6
Mass (g)340
Wrench Torque (Nm)12
Torque (Nm)12.5
Max. Torque (Nm)25
Max. Speed [rpm]10000
Moment of Inertia kg•m²2.1 x 10-4
Static Stiffness (Nm/rad)3000
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5

Product specifications

Min. Bore Diameter [D1] & [D2]15
Max. Bore Diameter [D1] & [D2]30
Diameter [A]63
Dimension [L]20
Dimension [W]61
Diameter [E]35
Dimension [F]7
Dimension [G]24
Dimension [M]M6
Mass (g)340
Wrench Torque (Nm)12
Torque (Nm)12.5
Max. Torque (Nm)25
Max. Speed [rpm]10000
Moment of Inertia kg•m²2.1 x 10-4
Static Stiffness (Nm/rad)3000
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5
