SME.00.20

Ondrives Precision Gears and Gearboxes Part number SME.00.20

SME.00.20

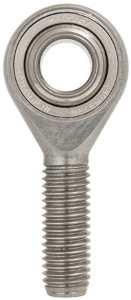

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 20mm Bore.
Ondrives Precision Gears and Gearboxes Part number SME.00.20 Ondrives Precision Gears and Gearboxes Part number SME.00.20

Product specifications

Diameter [d] H720
Dimension [B]25 +0/-0.05
Dimension [C]18 ±0.02
Dimension [dk]34.92
Diameter [d1]24.38
Dimension [d2]46
Thread [d3]M20 x 1.5
Dimension [h]78
Dimension [L1]47 ±0.05
Dimension [b]101
Max. Tilt Angle15°
Static Load Rating [N]26400
Mass (g)320

Product specifications

Diameter [d] H720
Dimension [B]25 +0/-0.05
Dimension [C]18 ±0.02
Dimension [dk]34.92
Diameter [d1]24.38
Dimension [d2]46
Thread [d3]M20 x 1.5
Dimension [h]78
Dimension [L1]47 ±0.05
Dimension [b]101
Max. Tilt Angle15°
Static Load Rating [N]26400
Mass (g)320
