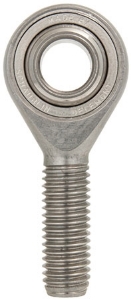

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 3mm Bore.

Product specifications

Diameter [d] H73
Dimension [B]6 +0/-0.05
Dimension [C]4.5 ±0.02
Dimension [dk]7.93
Diameter [d1]5.18
Dimension [d2]12
Thread [d3]M3 x 0.50
Dimension [h]27
Dimension [L1]15 ±0.05
Dimension [b]33
Max. Tilt Angle15°
Static Load Rating [N]900
Mass (g)5

Product specifications

Diameter [d] H73
Dimension [B]6 +0/-0.05
Dimension [C]4.5 ±0.02
Dimension [dk]7.93
Diameter [d1]5.18
Dimension [d2]12
Thread [d3]M3 x 0.50
Dimension [h]27
Dimension [L1]15 ±0.05
Dimension [b]33
Max. Tilt Angle15°
Static Load Rating [N]900
Mass (g)5
