BEM-18/RH

Ondrives Precision Gears and Gearboxes Part number BEM-18/RH

BEM-18/RH

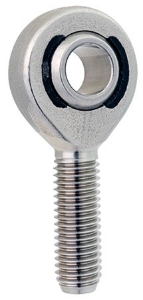

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Right Hand Thread. 18mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-18/RH Ondrives Precision Gears and Gearboxes Part number BEM-18/RH Ondrives Precision Gears and Gearboxes Part number BEM-18/RH

Product specifications

Diameter [d]18
Dimension [B]23
Dimension [C]16.5
Dimension [dk]31.75
Diameter [d1]21.8
Dimension [d2]46
Thread [d3]M18 x 1.5
Dimension [h]72
Dimension [L1]44
Dimension [b]95
Dimension [L3]25
Max. Tilt Angle15°
Static Load Rating [N]69700
Dynamic Load Rating [N]26300
Mass (g)250

Product specifications

Diameter [d]18
Dimension [B]23
Dimension [C]16.5
Dimension [dk]31.75
Diameter [d1]21.8
Dimension [d2]46
Thread [d3]M18 x 1.5
Dimension [h]72
Dimension [L1]44
Dimension [b]95
Dimension [L3]25
Max. Tilt Angle15°
Static Load Rating [N]69700
Dynamic Load Rating [N]26300
Mass (g)250
