BEM-06/RH

Ondrives Precision Gears and Gearboxes Part number BEM-06/RH

BEM-06/RH

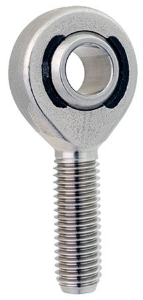

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Right Hand Thread. 6mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-06/RH Ondrives Precision Gears and Gearboxes Part number BEM-06/RH Ondrives Precision Gears and Gearboxes Part number BEM-06/RH

Product specifications

Diameter [d]6
Dimension [B]9
Dimension [C]6.75
Dimension [dk]12.7
Diameter [d1]8.9
Dimension [d2]20
Thread [d3]M6
Dimension [h]36
Dimension [L1]22
Dimension [b]46
Dimension [L3]12
Max. Tilt Angle13°
Static Load Rating [N]11700
Dynamic Load Rating [N]4600
Mass (g)20
