CMM.00.08/LH

Ondrives Precision Gears and Gearboxes Part number CMM.00.08/LH

CMM.00.08/LH

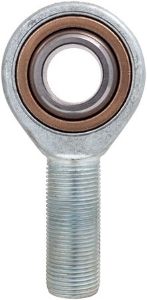

Heavy Duty Male Steel Rod End with Self-Lubricating Bronze Insert. Left Hand Thread. 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number CMM.00.08/LH Ondrives Precision Gears and Gearboxes Part number CMM.00.08/LH Ondrives Precision Gears and Gearboxes Part number CMM.00.08/LH

Product specifications

Diameter [d] H78
Dimension [B]12 +0/-0.12
Dimension [C]9
Dimension [dk]15.87
Diameter [d1]10.4
Dimension [d2]24
Thread [d3]M8
Dimension [h]42
Dimension [L1]25
Dimension [b]54
Max. Tilt Angle14°
Static Load Rating [N]8000
Mass (g)40

Product specifications

Diameter [d] H78
Dimension [B]12 +0/-0.12
Dimension [C]9
Dimension [dk]15.87
Diameter [d1]10.4
Dimension [d2]24
Thread [d3]M8
Dimension [h]42
Dimension [L1]25
Dimension [b]54
Max. Tilt Angle14°
Static Load Rating [N]8000
Mass (g)40
