CMM.00.05/LH

Ondrives Precision Gears and Gearboxes Part number CMM.00.05/LH

CMM.00.05/LH

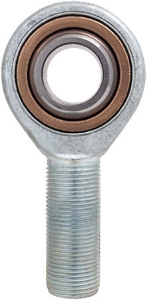

Heavy Duty Male Steel Rod End with Self-Lubricating Bronze Insert. Left Hand Thread. 5mm Bore.
Ondrives Precision Gears and Gearboxes Part number CMM.00.05/LH Ondrives Precision Gears and Gearboxes Part number CMM.00.05/LH Ondrives Precision Gears and Gearboxes Part number CMM.00.05/LH

Product specifications

Diameter [d] H75
Dimension [B]8 +0/-0.12
Dimension [C]6
Dimension [dk]11.11
Diameter [d1]7.7
Dimension [d2]18
Thread [d3]M5
Dimension [h]33
Dimension [L1]19
Dimension [b]42
Max. Tilt Angle13°
Static Load Rating [N]3000
Mass (g)15
