BEM-14/LH

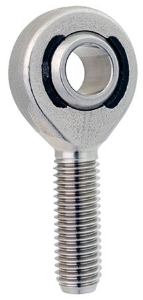

Ondrives Precision Gears and Gearboxes Part number BEM-14/LH

BEM-14/LH

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Left Hand Thread. 14mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-14/LH Ondrives Precision Gears and Gearboxes Part number BEM-14/LH Ondrives Precision Gears and Gearboxes Part number BEM-14/LH

Product specifications

Diameter [d]14
Dimension [B]19
Dimension [C]13.5
Dimension [dk]25.4
Diameter [d1]16.8
Dimension [d2]36
Thread [d3]M14
Dimension [h]60
Dimension [L1]36
Dimension [b]78
Dimension [L3]20
Max. Tilt Angle16°
Static Load Rating [N]45400
Dynamic Load Rating [N]15400
Mass (g)127
