SME5.45

SME5.45

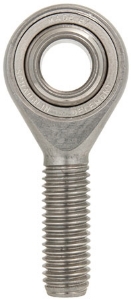

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 5mm Bore.

Product specifications

Diameter [d] H75
Dimension [B]8 +0/-0.05
Dimension [C]6 ±0.02
Dimension [dk]11.11
Diameter [d1]7.71
Dimension [d2]16
Thread [d3]M5 x 0.80
Dimension [h]33
Dimension [L1]20 ±0.05
Dimension [b]41
Max. Tilt Angle13°
Static Load Rating [N]1500
Mass (g)12
