SME4.45

SME4.45

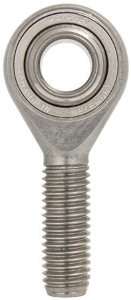

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 4mm Bore.

Product specifications

Diameter [d] H74
Dimension [B]7 +0/-0.05
Dimension [C]5.25 ±0.02
Dimension [dk]9.52
Diameter [d1]6.46
Dimension [d2]14
Thread [d3]M4 x 0.70
Dimension [h]30
Dimension [L1]18 ±0.05
Dimension [b]37
Max. Tilt Angle14°
Static Load Rating [N]900
Mass (g)9
