SME12.45

Ondrives Precision Gears and Gearboxes Part number SME12.45

SME12.45

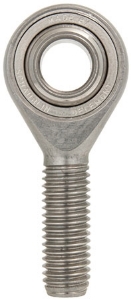

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number SME12.45 Ondrives Precision Gears and Gearboxes Part number SME12.45

Product specifications

Diameter [d] H712
Dimension [B]16 +0/-0.05
Dimension [C]12 ±0.02
Dimension [dk]22.23
Diameter [d1]15.43
Dimension [d2]30
Thread [d3]M12 x 1.75
Dimension [h]54
Dimension [L1]33 ±0.05
Dimension [b]69
Max. Tilt Angle13°
Static Load Rating [N]7700
Mass (g)87
