LPB-30M

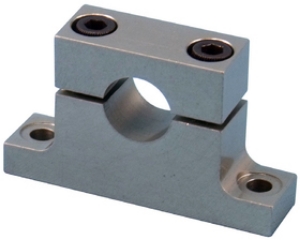

LPB-M Shaft Support

LPB-30M

Aluminium Shaft Support, Low Profile, Top Loading

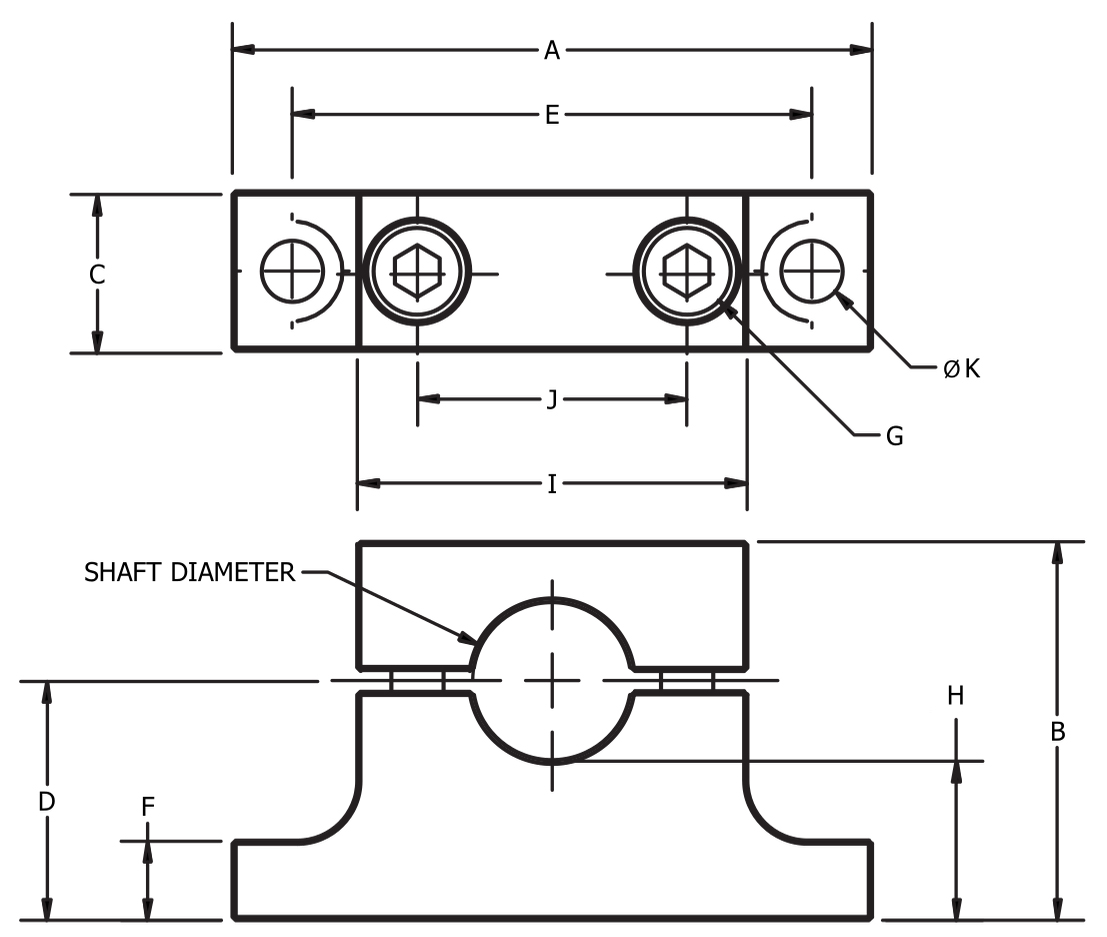

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter30
Width [A]96
Height [B]52
Depth [C]19
Shaft Centre Line Height [D] +0/-0.0532
Fixing Centre Distance [E]78
Tab Thickness [F]10
Capscrew [G]M8
[H]17
[I]62
[J]44
Screw Clearance [K]Ø9
Mass [kg]0.503

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter30
Width [A]96
Height [B]52
Depth [C]19
Shaft Centre Line Height [D] +0/-0.0532
Fixing Centre Distance [E]78
Tab Thickness [F]10
Capscrew [G]M8
[H]17
[I]62
[J]44
Screw Clearance [K]Ø9
Mass [kg]0.503
