LPB-16M

LPB-M Shaft Support

LPB-16M

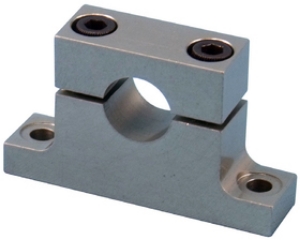

Aluminium Shaft Support, Low Profile, Top Loading

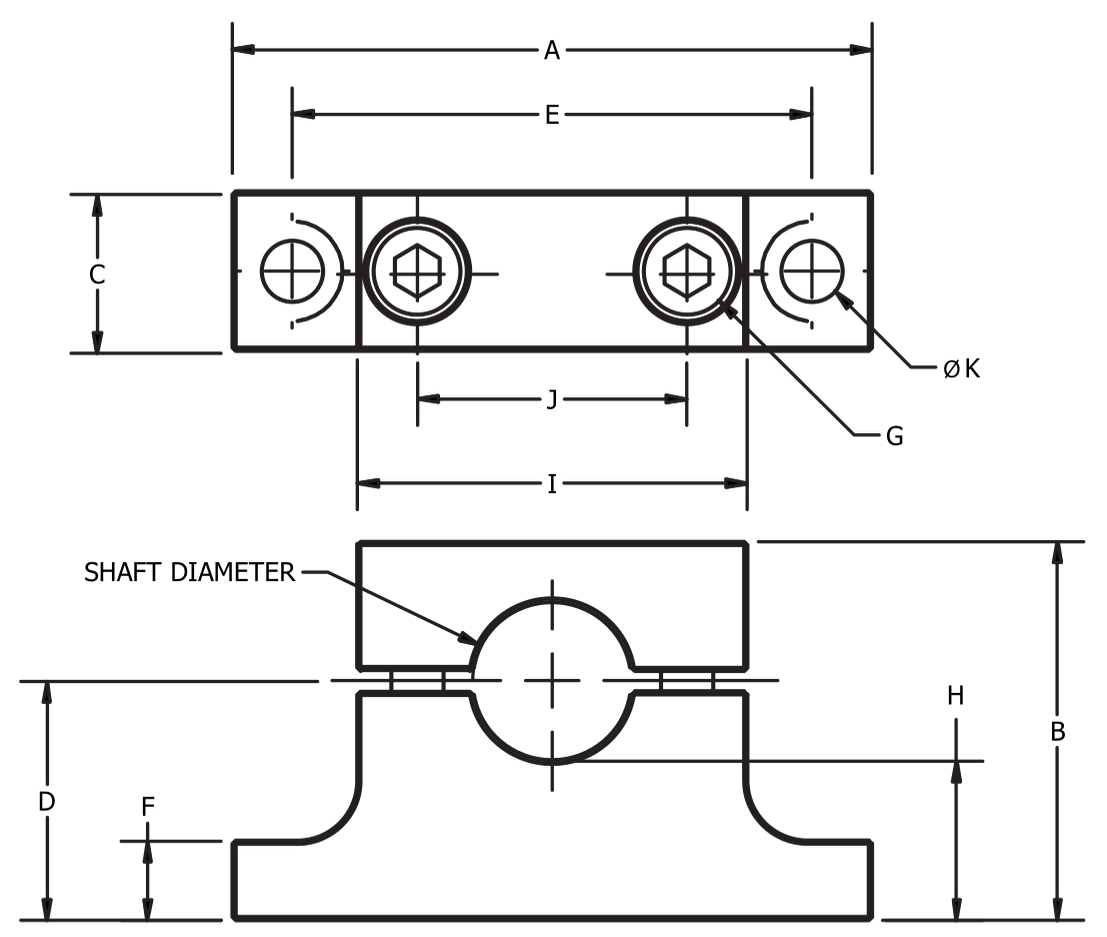

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter16
Width [A]62
Height [B]31
Depth [C]13
Shaft Centre Line Height [D] +0/-0.0518
Fixing Centre Distance [E]50
Tab Thickness [F]6
Capscrew [G]M5
[H]10
[I]38
[J]26
Screw Clearance [K]Ø5.5
Mass [kg]0.117

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter16
Width [A]62
Height [B]31
Depth [C]13
Shaft Centre Line Height [D] +0/-0.0518
Fixing Centre Distance [E]50
Tab Thickness [F]6
Capscrew [G]M5
[H]10
[I]38
[J]26
Screw Clearance [K]Ø5.5
Mass [kg]0.117
