LPB-10M

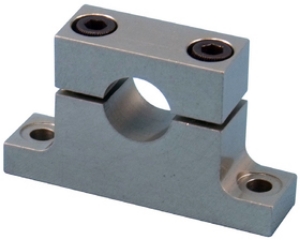

LPB-M Shaft Support

LPB-10M

Aluminium Shaft Support, Low Profile, Top Loading

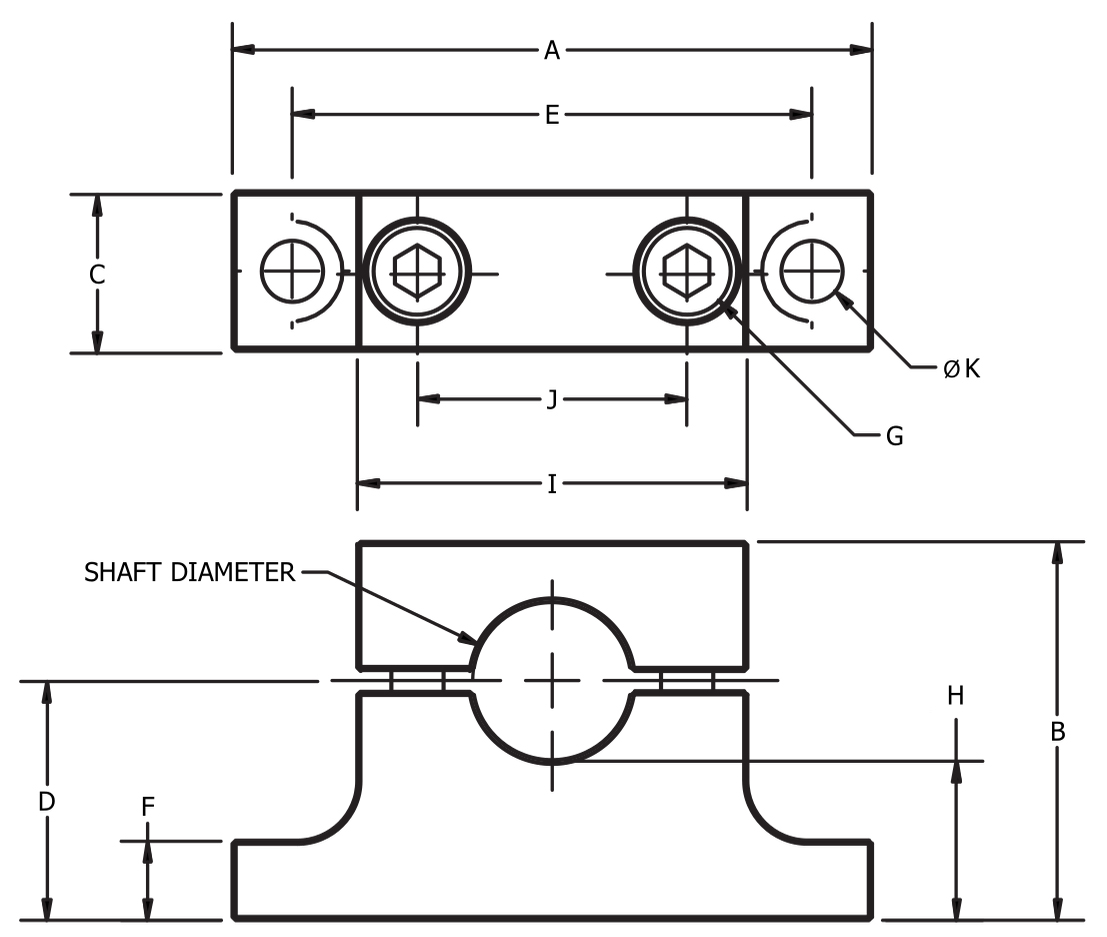

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter10
Width [A]46
Height [B]25
Depth [C]12
Shaft Centre Line Height [D] +0/-0.0514
Fixing Centre Distance [E]38
Tab Thickness [F]5
Capscrew [G]M4
[H]9
[I]28
[J]18
Screw Clearance [K]Ø4.5
Mass [kg]0.05

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter10
Width [A]46
Height [B]25
Depth [C]12
Shaft Centre Line Height [D] +0/-0.0514
Fixing Centre Distance [E]38
Tab Thickness [F]5
Capscrew [G]M4
[H]9
[I]28
[J]18
Screw Clearance [K]Ø4.5
Mass [kg]0.05
