LPB-06M

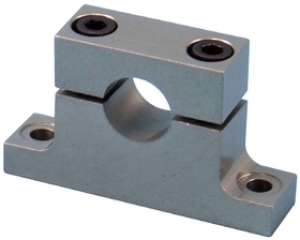

LPB-M Shaft Support

LPB-06M

Aluminium Shaft Support, Low Profile, Top Loading

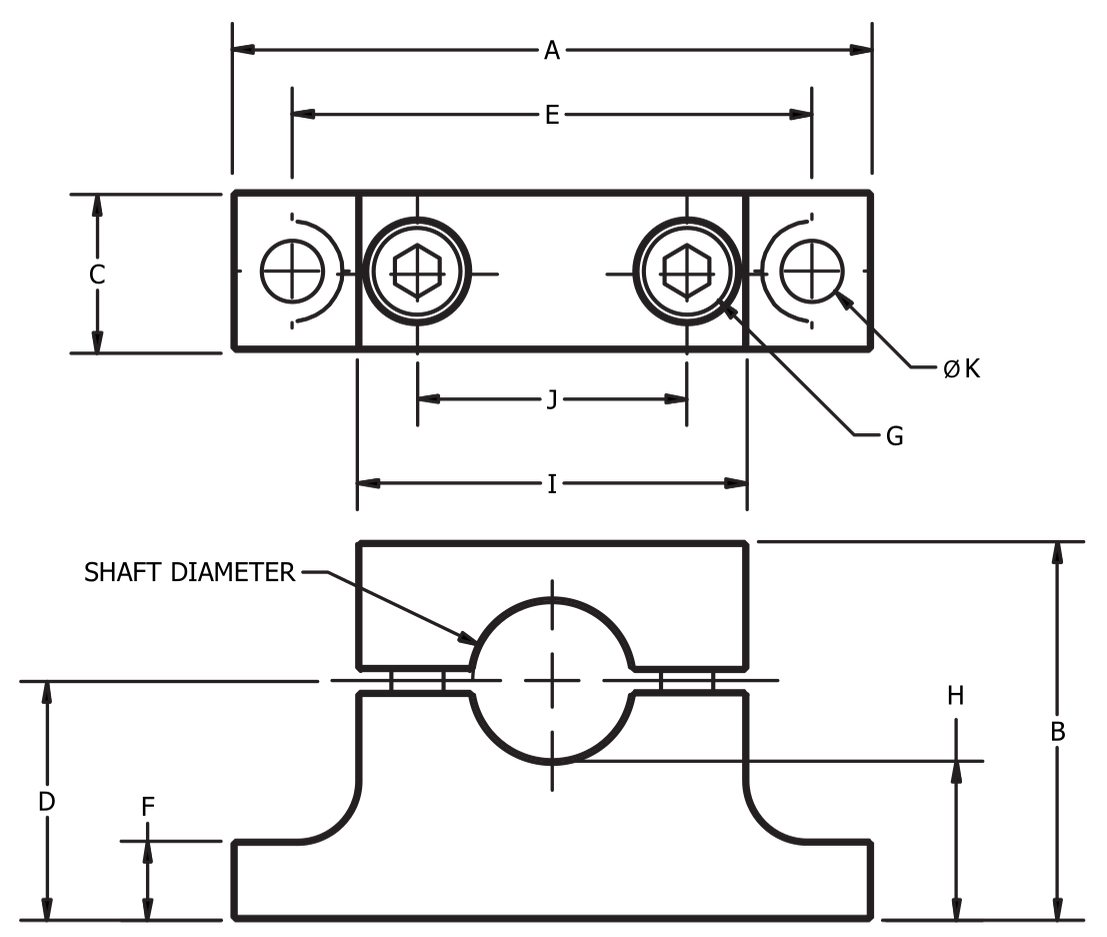

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter6
Width [A]42
Height [B]20
Depth [C]10
Shaft Centre Line Height [D] +0/-0.0511
Fixing Centre Distance [E]34
Tab Thickness [F]4
Capscrew [G]M4
[H]8
[I]24
[J]14
Screw Clearance [K]Ø4.5
Mass [kg]0.018

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter6
Width [A]42
Height [B]20
Depth [C]10
Shaft Centre Line Height [D] +0/-0.0511
Fixing Centre Distance [E]34
Tab Thickness [F]4
Capscrew [G]M4
[H]8
[I]24
[J]14
Screw Clearance [K]Ø4.5
Mass [kg]0.018
