LPB-05M

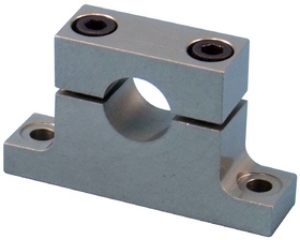

LPB-M Shaft Support

LPB-05M

Aluminium Shaft Support, Low Profile, Top Loading

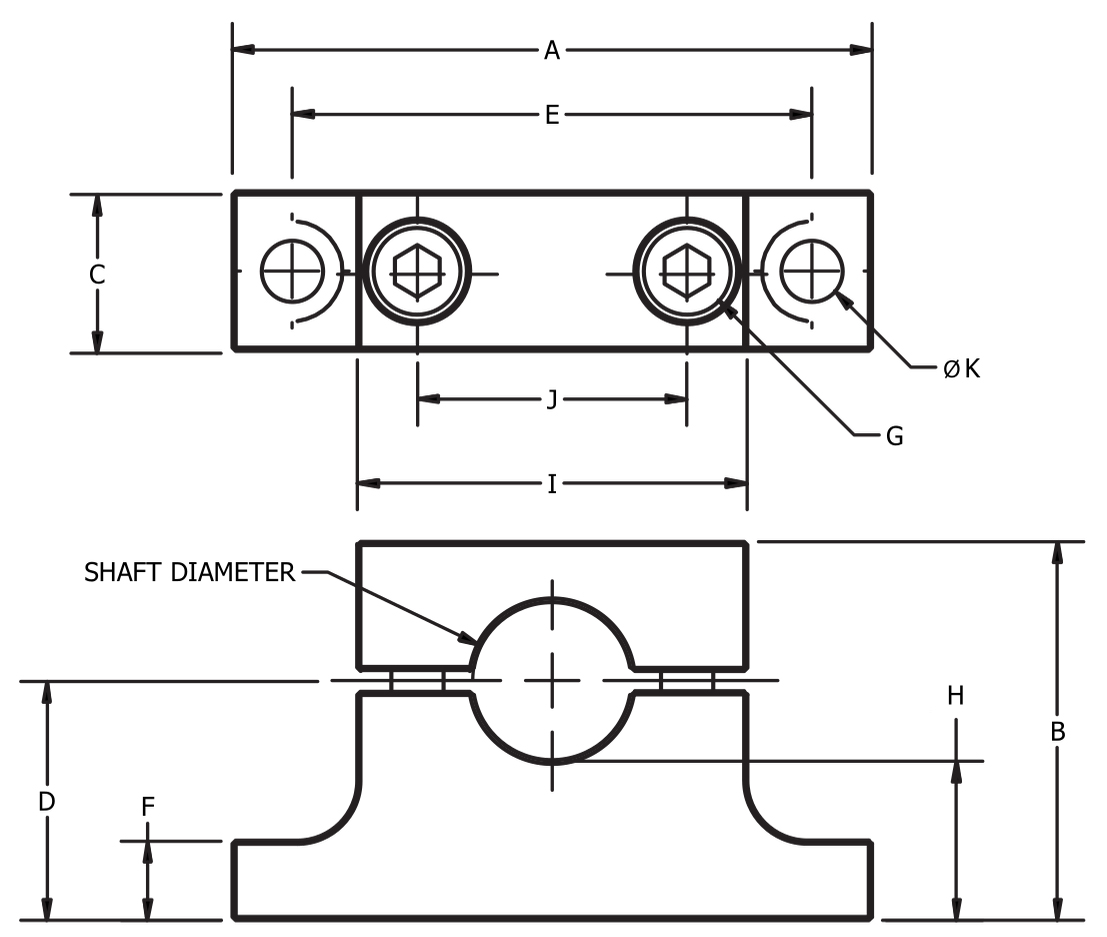

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter5
Width [A]36
Height [B]18
Depth [C]8
Shaft Centre Line Height [D] +0/-0.0510
Fixing Centre Distance [E]30
Tab Thickness [F]4
Capscrew [G]M3
[H]7
[I]20
[J]12
Screw Clearance [K]Ø3.4
Mass [kg]0.014

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter5
Width [A]36
Height [B]18
Depth [C]8
Shaft Centre Line Height [D] +0/-0.0510
Fixing Centre Distance [E]30
Tab Thickness [F]4
Capscrew [G]M3
[H]7
[I]20
[J]12
Screw Clearance [K]Ø3.4
Mass [kg]0.014
