LPB-04M

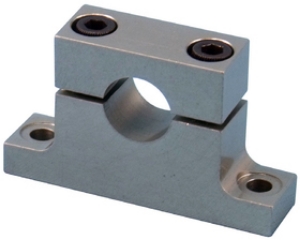

LPB-M Shaft Support

LPB-04M

Aluminium Shaft Support, Low Profile, Top Loading

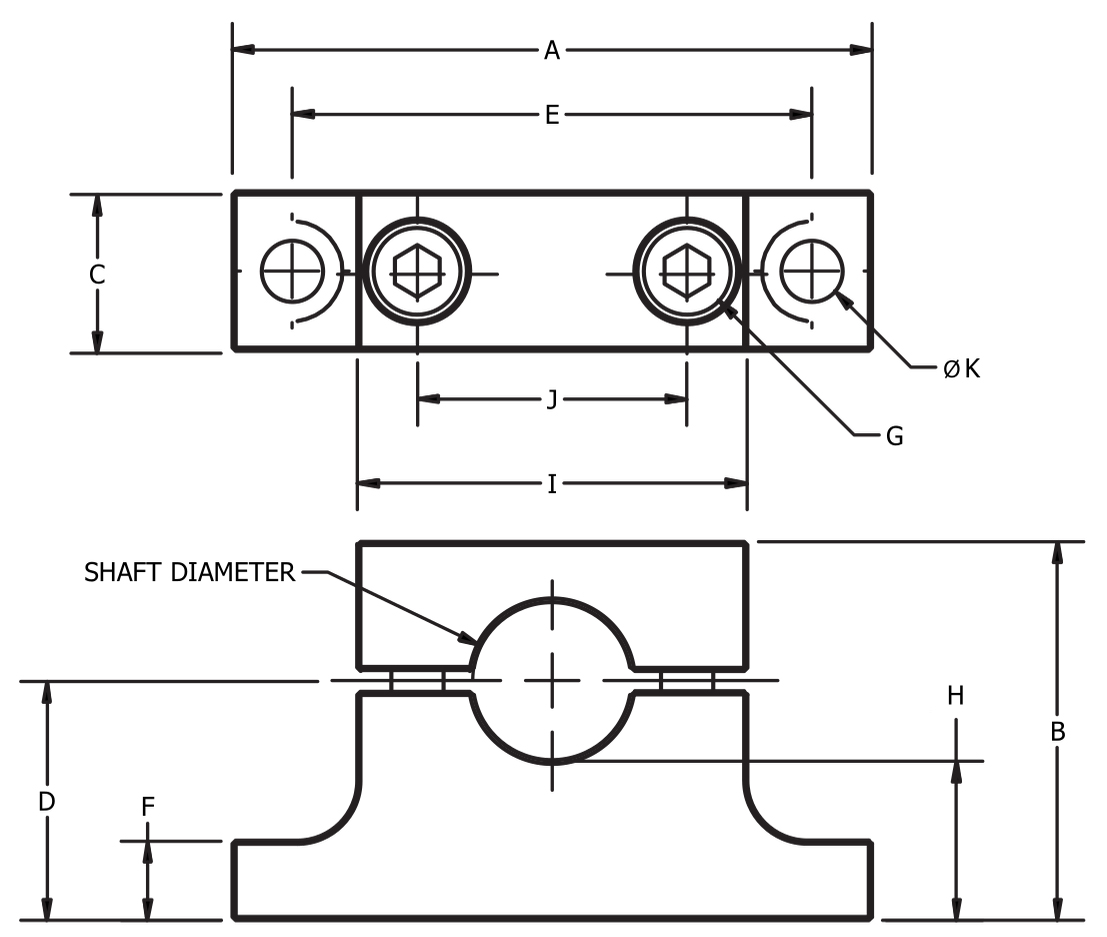

LPB-M Shaft Support Drawing

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter4
Width [A]24
Height [B]13
Depth [C]6
Shaft Centre Line Height [D] +0/-0.057
Fixing Centre Distance [E]20
Tab Thickness [F]3
Capscrew [G]M2
[H]5
[I]14
[J]8
Screw Clearance [K]Ø2.4
Mass [kg]0.018

Product specifications

TypeLow Profile
MaterialAluminium
Shaft Diameter4
Width [A]24
Height [B]13
Depth [C]6
Shaft Centre Line Height [D] +0/-0.057
Fixing Centre Distance [E]20
Tab Thickness [F]3
Capscrew [G]M2
[H]5
[I]14
[J]8
Screw Clearance [K]Ø2.4
Mass [kg]0.018
