PSBS2.00-21-45-65

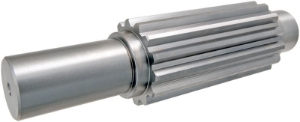

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS2.00-21-45-65

Precision Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min327.44
Spline DIN 5480W45x2.00x30x21x8f
Spline Module mn2
No. of Spline Teeth21
Ref. Diameter [dB]45
Dimension [L]65
Diameter [d1] j630
Diameter [d2] h735
Dimension [L1]41
Dimension [b]16

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min327.44
Spline DIN 5480W45x2.00x30x21x8f
Spline Module mn2
No. of Spline Teeth21
Ref. Diameter [dB]45
Dimension [L]65
Diameter [d1] j630
Diameter [d2] h735
Dimension [L1]41
Dimension [b]16
