PSBS1.25-24-32-60

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-24-32-60

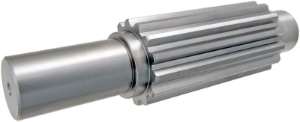

Precision Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min267.3
Spline DIN 5480W32x1.25x30x24x8f
Spline Module mn1.25
No. of Spline Teeth24
Ref. Diameter [dB]32
Dimension [L]60
Diameter [d1] j620
Diameter [d2] h724
Dimension [L1]36
Dimension [b]12

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min267.3
Spline DIN 5480W32x1.25x30x24x8f
Spline Module mn1.25
No. of Spline Teeth24
Ref. Diameter [dB]32
Dimension [L]60
Diameter [d1] j620
Diameter [d2] h724
Dimension [L1]36
Dimension [b]12
