PSBS1.25-18-25-60

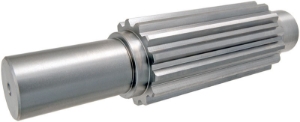

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-18-25-60

Precision Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min150.36
Spline DIN 5480W25x1.25x30x18x8f
Spline Module mn1.25
No. of Spline Teeth18
Ref. Diameter [dB]25
Dimension [L]60
Diameter [d1] j615
Diameter [d2] h720
Dimension [L1]27
Dimension [b]13

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min150.36
Spline DIN 5480W25x1.25x30x18x8f
Spline Module mn1.25
No. of Spline Teeth18
Ref. Diameter [dB]25
Dimension [L]60
Diameter [d1] j615
Diameter [d2] h720
Dimension [L1]27
Dimension [b]13
