PSBS1.25-14S-20-60

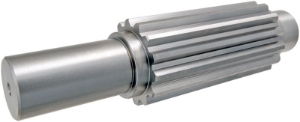

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-14S-20-60

Precision Stainless Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min56.85
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Dimension [L]60
Diameter [d1] j612
Diameter [d2] h716
Dimension [L1]20
Dimension [b]10

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min56.85
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Dimension [L]60
Diameter [d1] j612
Diameter [d2] h716
Dimension [L1]20
Dimension [b]10
