PSBS1.25-12S-17-60

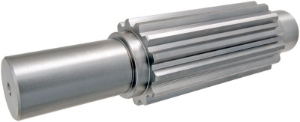

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-12S-17-60

Precision Stainless Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min41.77
Spline DIN 5480W17x1.25x30x12x8f
Spline Module mn1.25
No. of Spline Teeth12
Ref. Diameter [dB]17
Dimension [L]60
Diameter [d1] j610
Diameter [d2] h713
Dimension [L1]17
Dimension [b]8

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min41.77
Spline DIN 5480W17x1.25x30x12x8f
Spline Module mn1.25
No. of Spline Teeth12
Ref. Diameter [dB]17
Dimension [L]60
Diameter [d1] j610
Diameter [d2] h713
Dimension [L1]17
Dimension [b]8
