Timing Pulleys
HTD Heavy Duty Timing Pulleys & Rubber Belts
HTD 3M : Pulley 3mm Pitch 9mm Belt Width

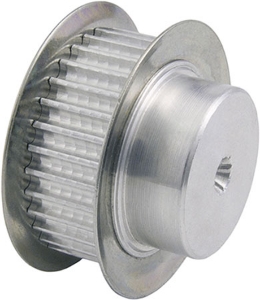

P40-3M-09F
P40-3M-09F
HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 9mm Wide Belts
Product specifications
Pulley Tooth
3M
Belt Width
9
No. of Teeth [z]
40
Execution
1F
PCD [d0]
38.20
Tip Diameter [dk]
37.44
Flange Diameter [Df]
42
Hub Diameter [Dm]
28
Face Width [F]
13.4
Overall Width [L]
22.2
Bore Diameter [d]
6
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
3M
Belt Width
9
No. of Teeth [z]
40
Execution
1F
PCD [d0]
38.20
Tip Diameter [dk]
37.44
Flange Diameter [Df]
42
Hub Diameter [Dm]
28
Face Width [F]
13.4
Overall Width [L]
22.2
Bore Diameter [d]
6
No. of Flanges
2
