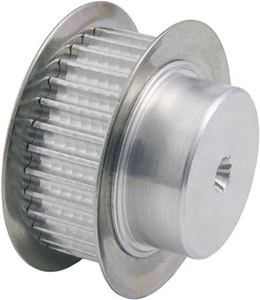

P28-3M-09F

Ondrives Precision Gears and Gearboxes Part number P28-3M-09F

P28-3M-09F

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 9mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P28-3M-09F Ondrives Precision Gears and Gearboxes Part number P28-3M-09F

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]28
Execution1F
PCD [d0]26.74
Tip Diameter [dk]25.98
Flange Diameter [Df]32
Hub Diameter [Dm]18
Face Width [F]12.8
Overall Width [L]20.6
Bore Diameter [d]6
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]28
Execution1F
PCD [d0]26.74
Tip Diameter [dk]25.98
Flange Diameter [Df]32
Hub Diameter [Dm]18
Face Width [F]12.8
Overall Width [L]20.6
Bore Diameter [d]6
No. of Flanges2
