P24-3M-09F

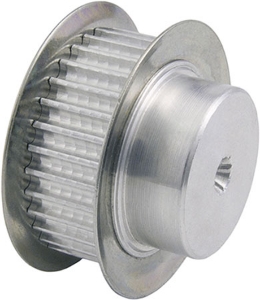

Ondrives Precision Gears and Gearboxes Part number P24-3M-09F

P24-3M-09F

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 9mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P24-3M-09F Ondrives Precision Gears and Gearboxes Part number P24-3M-09F

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]24
Execution1F
PCD [d0]22.92
Tip Diameter [dk]22.16
Flange Diameter [Df]25
Hub Diameter [Dm]14
Face Width [F]12.8
Overall Width [L]20.6
Bore Diameter [d]6
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]24
Execution1F
PCD [d0]22.92
Tip Diameter [dk]22.16
Flange Diameter [Df]25
Hub Diameter [Dm]14
Face Width [F]12.8
Overall Width [L]20.6
Bore Diameter [d]6
No. of Flanges2
