P14-3M-09F

Ondrives Precision Gears and Gearboxes Part number P14-3M-09F

P14-3M-09F

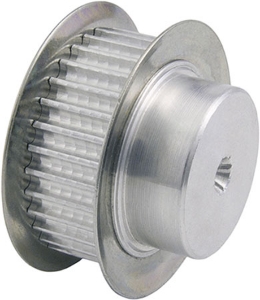

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 9mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P14-3M-09F Ondrives Precision Gears and Gearboxes Part number P14-3M-09F

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]14
Execution0F
PCD [d0]13.37
Tip Diameter [dk]12.61
Flange Diameter [Df]16
Hub Diameter [Dm]16
Face Width [F]10.2
Overall Width [L]17.5
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width9
No. of Teeth [z]14
Execution0F
PCD [d0]13.37
Tip Diameter [dk]12.61
Flange Diameter [Df]16
Hub Diameter [Dm]16
Face Width [F]10.2
Overall Width [L]17.5
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2
