P40-3M-15F

Ondrives Precision Gears and Gearboxes Part number P40-3M-15F

P40-3M-15F

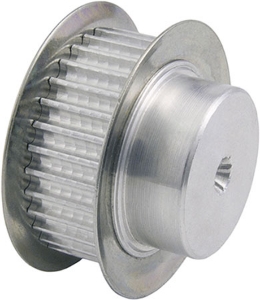

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 15mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P40-3M-15F Ondrives Precision Gears and Gearboxes Part number P40-3M-15F

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]40
Execution1F
PCD [d0]38.20
Tip Diameter [dk]37.44
Flange Diameter [Df]42
Hub Diameter [Dm]28
Face Width [F]20
Overall Width [L]30
Bore Diameter [d]6
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]40
Execution1F
PCD [d0]38.20
Tip Diameter [dk]37.44
Flange Diameter [Df]42
Hub Diameter [Dm]28
Face Width [F]20
Overall Width [L]30
Bore Diameter [d]6
No. of Flanges2
